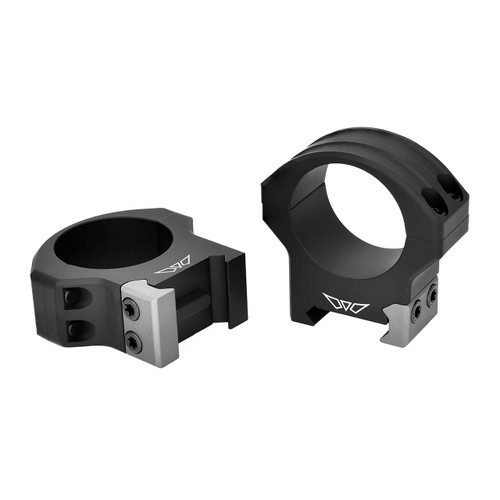

Medium height ultra-light weight scope rings for 34mm scope tube. Hunter on long hunt with weight saving ultra - lightweight scope rings for 34mm scope Close up of gray clamp on hyperlite lightweight scope rings for 34mm tube 34mm medium height ultra-lightweight hyperlite scope rings Hunter in the woods with hyperlight lightweight scope rings

8521M Warne HyperLite 34mm, Medium Matte Rings

MSRP: $119.99
Was: $119.99
Now: $109.99
(You save $10.00 )
SKU:
8521M
Brand:

HyperLite™

Shipping:
NEW - Introductory Price
  • Includes Black & Special Edition Gray Clamps
  • Ultra Lightweight
Current Stock:
251
Adding to cart… The item has been added
Key Features:
Best Uses:

Description

Available in 1 inch, 30mm & 34mm
Designed and MADE IN USA

The Warne® HyperLite™ 34mm Medium scope rings are the ultimate lightweight optic mounting solution. Crafted from our exclusive MagnaFusion™ Alloy, these rings offer a staggering 35% weight reduction over traditional aluminum scope rings without compromising on strength or stability while providing an unbeatable foundation for your optic.

  • 34mm Medium rings weigh 2.51 ounces per pair
  • 35% lighter than standard aluminum rings
  • Integrated recoil lug and dual-screw clamps maintain zero even under the harshest recoil
  • Precision CNC machined and topped with Cerakote® to ensure flawless performance in any environment
  • STANAG 4694 interface allows for better return to zero and rigidity
  • Fits both picatinny & weaver style bases, works best with full width cross slot mounts
  • Available for 1”, 30mm, and 34mm tube sizes; in Low, Medium, & High
  • Personalize you rifle with our Special Edition Gray Clamps for a unique contrast
  • Designed and manufactured in the USA

Specifications

Part Number:
8521M
Fits Objective Size:
52mm
Height:
Medium
Dimension A:
34mm
Dimension B:
0.400 inch
Dimension C:
0.730 inch
Dimension D:
1.070 inch
Finish Color:
Matte Black
Weight:
2.51 oz
Material:
MagnaFusion
Fits Objective Up To:
52mm
Scope Tube Diameter:
34mm
Fits:
Maxima/Weaver Bases and Picatinny Rails

Related Products

Installation Instructions

Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.
  • Remove all 4 cap screws and cap on each ring.
  • Loosen both clamp screws on each ring and place in desired position on Maxima®/Weaver style bases or picatinny rail.
  • Push each ring towards muzzle to seat recoil keys and tighten clamp screws to 25 in-lb.
  • Place scope in rings and reinstall cap screws, leave loose.
  • With the scope still loose in the rings, adjust the scope for eye relief and correct orientation of the reticle.

*Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND

**Many scope manufacturers’ have established specific torque ratings for their scope and you must follow their recommended torque.

To remove the scope, simply loosen the clamp scews on each ring and lift the scope off the mount, tilting slightly to the opposite side of the clamps. To re-mount the scope, simply place the rings into the slots the scope was originally mounted in, slide the rings and scope forward until the recoil lugs contact the front of the slot, and tighten the clamp screws.

IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.

If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.

!
