Always verify that your firearm is UN-LOADED before performing any service on it. ONLY ADJUST BIPOD WITH MUZZLE POINTING IN A SAFE DIRECTION, DOWN RANGE.

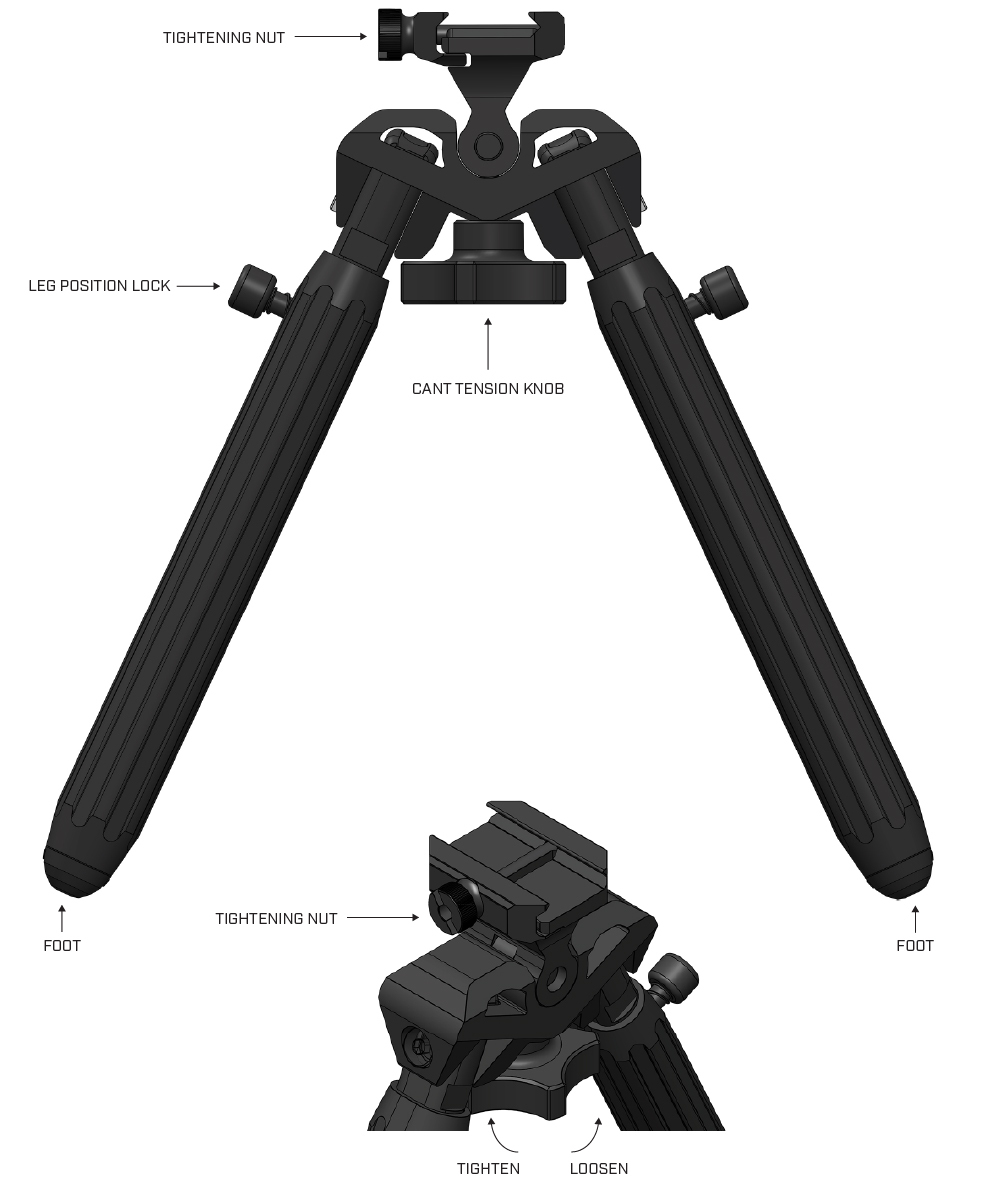

- Loosen tightening nut on the Bipod mount and install on your firearm’s rail.
- Secure the bipod by turning the tightening nut clockwise. A flathead screwdriver may be used to fully tighten the nut.
- To remove the bipod, loosen the tightening nut by turning it counterclockwise.
Warne recommends that you periodically check mount tension and adjust as needed, also re-adjust if mounting on different firearm(s).
- Legs can be deployed by pulling on the leg, moving it to the desired position and releasing. Legs lock at 0, 90 and 180 degrees. From the stowed position at 0 degrees, applying pressure to the back of the leg with your thumb can make leg deployment easier.
- Bipod legs may be extended by depressing and holding the leg position lock button, extending to the desired length, and releasing the button (make sure the leg button locks into one of the height positions). Retract legs by depressing the button and returning legs back to their collapsed height.
- To adjust the cant tension (ease of movement), tighten or loosen the cant tension knob.
