8550M, Hyperlite 1 inch MSR Mount, Black
MSRP:
$199.99
Was:
$199.99
Now:
$179.99
(You save
$20.00
)
- SKU:
- 8550M
- Brand:
-
HyperLite™
- MSR Ideal Height
- Over 2 inches of forward Cantilever
- Ultra Lightweight
Key Features:
Best Uses:
Description
Available in 1inch & 30mm
Designed and MADE IN USA
This product contains chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov
The Warne® HyperLite™ MSR Mount is the ultimate lightweight optic mounting solution. Crafted from our exclusive MagnaFusion™ Alloy, this 1-piece mount offers a staggering 35% weight reduction over traditional aluminum mounts without compromising on strength or stability while providing an unbeatable foundation for your optic.
Scope Mount fits: AR-15, M-4, SR-25, LR308, PTR-91, and any other MSR with a Picatinny rail that is at least 3 inches long.
Specifications
- Part Number:
- 8550M
- Fits Objective Size:
- 72mm
- Height:
- MSR Ideal Height

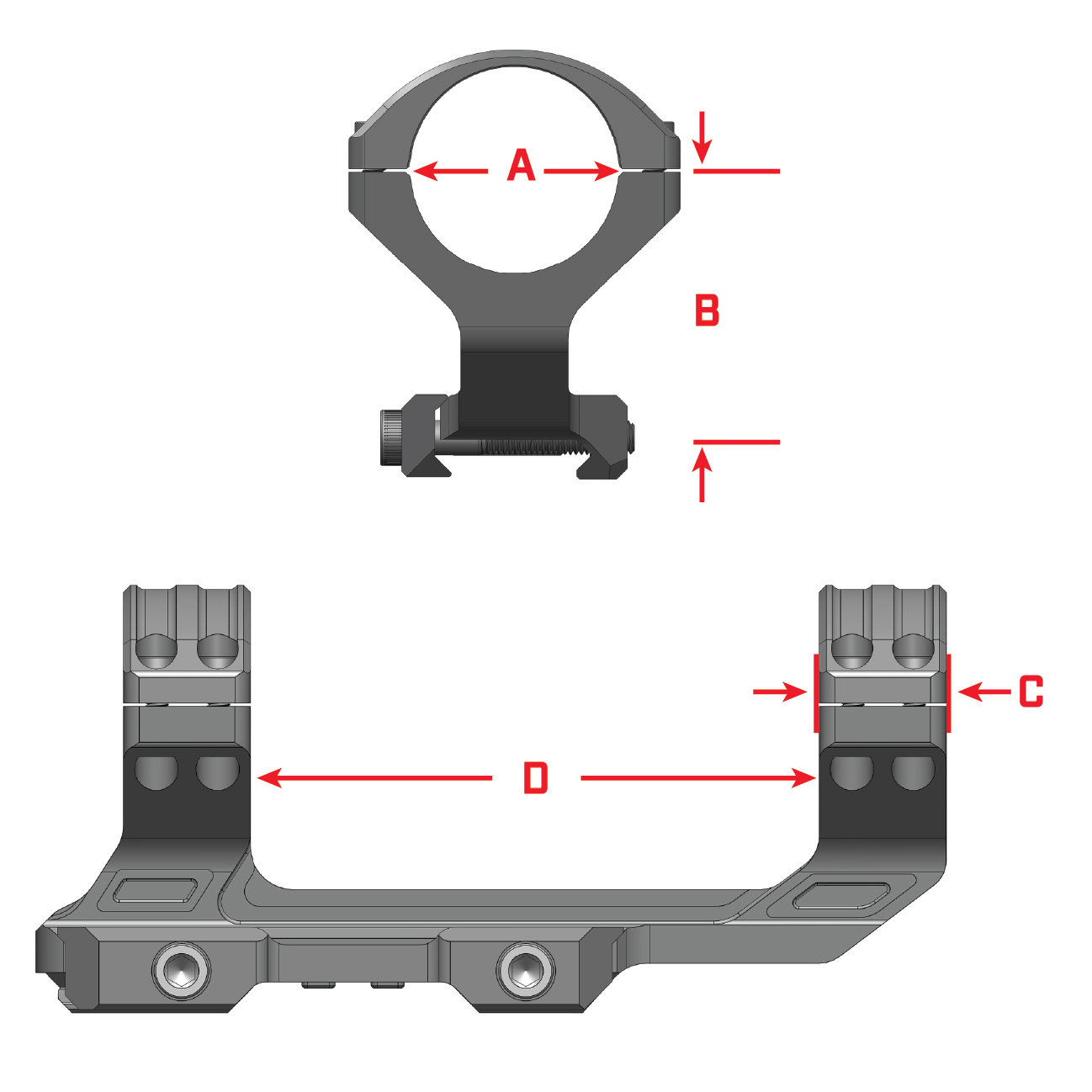

- Dimension A:
- 1 inch
- Dimension B:
- 1.54 inch
- Dimension C:
- .730 inch
- Dimension D:
- 3.25 inch
- Finish Color:
- Black
- Weight:
- 4.2 oz
- Material:
- MagnaFusion
- Scope Tube Diameter:
- 1 inch
- Fits Objective Up To:
- MSR Ideal Height
Related Products
Tactical
XSKEL1TW Gen 2, Extended Skeletonized 1 inch MSR Mount, Black
MSRP:
$159.99
Was:
$159.99
Now:
$141.99
Sale

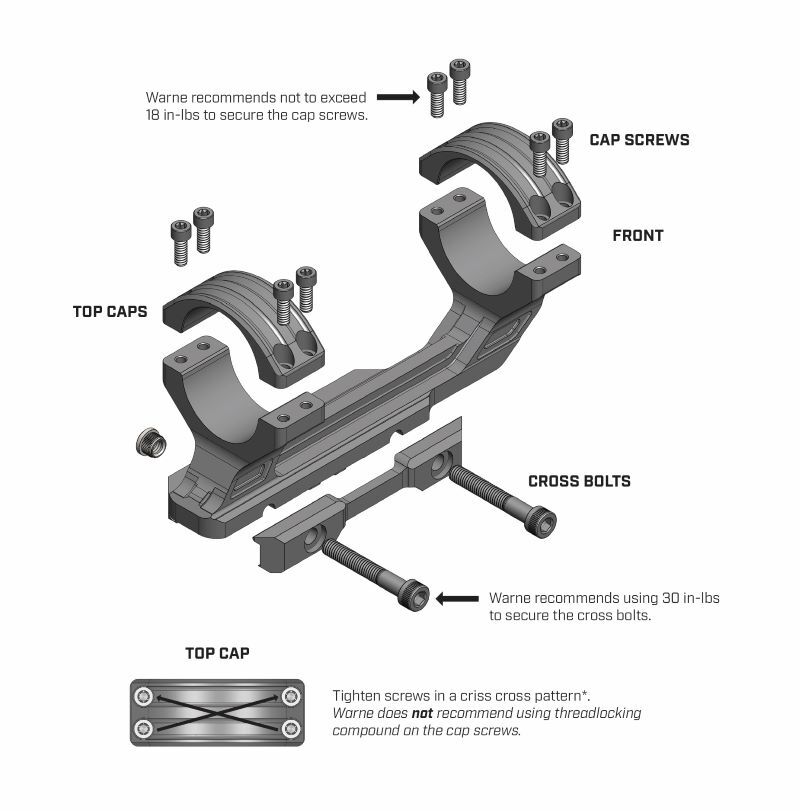

Installation Instructions
Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.
- Loosen both nuts on the mount and install on your Picatinny style rail with the cantilever forward
- Warne recommends mounting the 1 piece with the front cross bolt in the farthest forward slot on AR15 Flat Tops.
- Push the mount towards the muzzle and tighten cross bolts to 30 in-lb.
- Remove the four cap screws from each top cap with the supplied T-15 wrench and remove the top caps.
- Place scope in rings and reinstall cap screws*, leave loose.
- Adjust scope position for eye relief and level reticle.
- Level the reticle and then tighten the cap screws in a crisscross pattern to scope manufactures* recommended torque setting.
*Check scope documentation or contact scope maker, most scope manufactures have a specific maximum torque value for mounting, however, Warne® recommends not to exceed 18 in-lb. on the cap screws. Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND.
IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.
If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.
