V7934M Vapor Bipod, M-LOK® Interface
$99.99
- SKU:
- V7934M
- Brand:
-
Vapor®
- Shipping:
- NEW - NOW SHIPPING
- M-LOK® Head Interface
- Quick Pull Leg Deployment
- 8 adjustable height increments
Key Features:
Best Uses:
Description
M-LOK® interface
Designed and MADE IN USA
This product contains chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov
The Warne® Vapor® Bipod features an all-aluminum construction with steel hardware to ensure performance—no matter your budget. The legs boast eight height positions providing over three inches of height adjustment and can be locked in 0, 90, and 180 degrees, making the bipod completely reversible. The 50 degrees of total cant is adjusted by an oversized aluminum tension knob, ensuring you can lock in your position with confidence. Designed, engineered, and manufactured in the USA.
BODY
• Stowable at 0° or 180° and deployed at 90° — making the bipod completely reversible
• Oversized aluminum tension knob
• 50° of total cant range
• All aluminum construction with steel hardware
• M-LOK® head style
LEGS
• Buttonless stow and quick pull deployment of legs
• 8 leg positions
• Minimum height: 7.1”
• Maximum height: 10.5”
Specifications
- Part Number:
- V7934M
- Finish Color:
- Matte Black
- Weight:
- 13.1 oz
- Material:
- Aluminum
- Fits:
- M-LOK® interface
Related Products

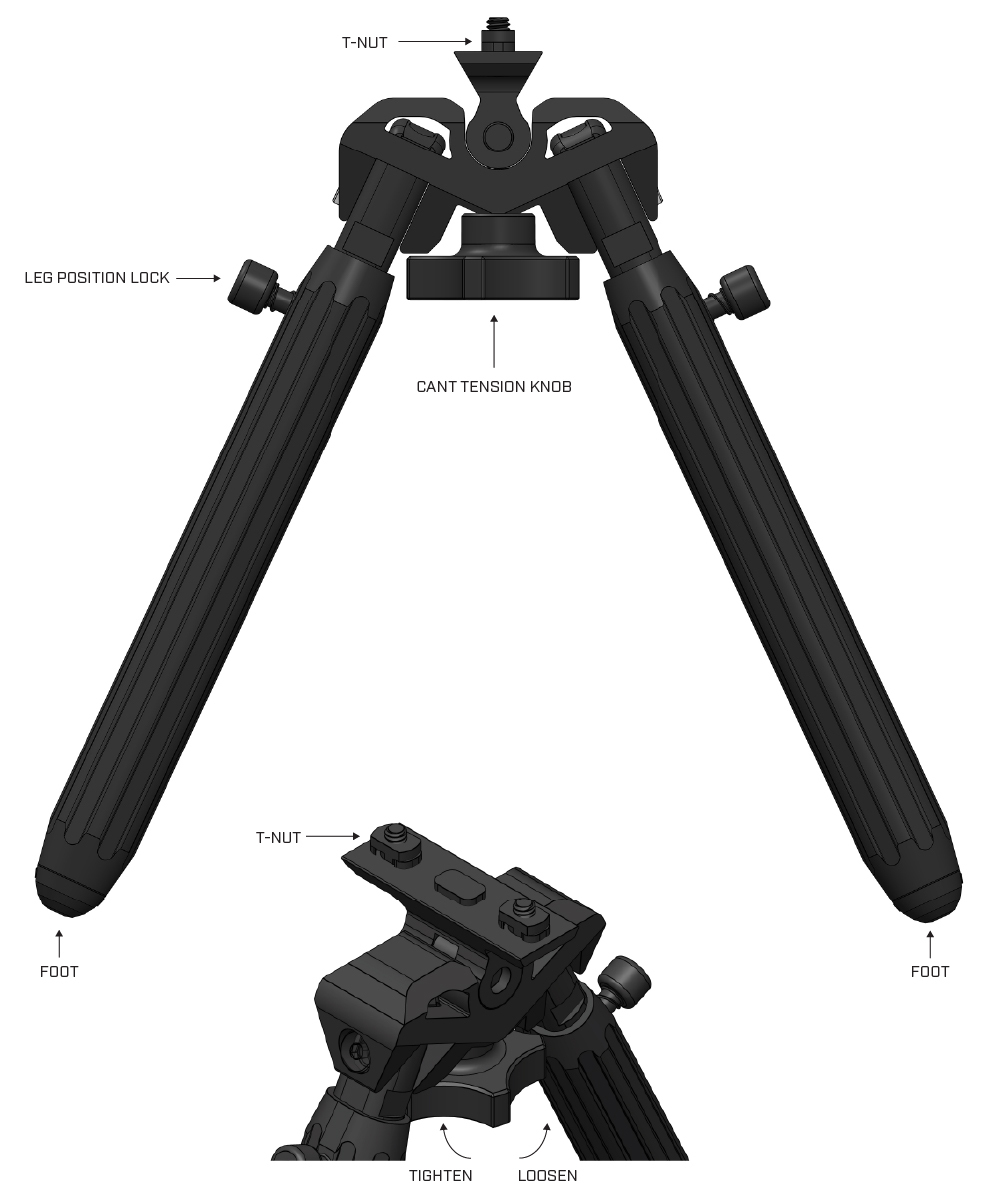

Installation Instructions
Always verify that your firearm is UN-LOADED before performing any service on it. ONLY ADJUST BIPOD WITH MUZZLE POINTING IN A SAFE DIRECTION, DOWN RANGE
- ONLY INSTALL OR ADJUST BIPOD WITH MUZZLE POINTING IN A SAFE DIRECTION, DOWN RANGE.
- Install the bipod into the M-LOK slots and slide forward to secure.
- Tighten the screws until the T-Nuts lock in place and torque to a maximum of 35 in-lbs if attaching to metal components, or 15 in-lbs if mounting to polymer components.
- Legs can be deployed by pulling on the leg, moving it to the desired position and releasing. Legs lock at 0, 90 and 180 degrees. From the stowed position at 0 degrees, applying pressure to the back of the leg with your thumb can make leg deployment easier.
- Bipod legs may be extended by depressing and holding the leg position lock button, extending to the desired length, and releasing the button (make sure the leg button locks into one of the height positions). Retract legs by depressing the button and returning legs back to their collapsed height.
- To adjust the cant tension (ease of movement), tighten or loosen the cant tension knob.
Warne recommends that you periodically check lever tension and adjust as needed, also re-adjust if mounting on different firearm(s).
IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH AN ACCESSORY IF IT TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.
If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.
