Description
Picatinny interface
Designed and MADE IN USA
This product contains chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov
The Warne® Vapor® Bipod features an all-aluminum construction with steel hardware to ensure performance—no matter your budget. The legs boast eight height positions providing over three inches of height adjustment and can be locked in 0, 90, and 180 degrees, making the bipod completely reversible. The 50 degrees of total cant is adjusted by an oversized aluminum tension knob, ensuring you can lock in your position with confidence. Designed, engineered, and manufactured in the USA.
BODY
• Stowable at 0° or 180° and deployed at 90° — making the bipod completely reversible
• Oversized aluminum tension knob
• 50° of total cant range
• All aluminum construction with steel hardware
• Picatinny head style
LEGS
• Buttonless stow and quick pull deployment of legs
• 8 leg positions
• Minimum height: 7.1”
• Maximum height: 10.5”
Specifications
- Part Number:
- V7933M
- Finish Color:
- Matte Black
- Weight:
- 17 oz
- Material:
- Aluminum
- Fits:
- Picatinny Rail
Related Products

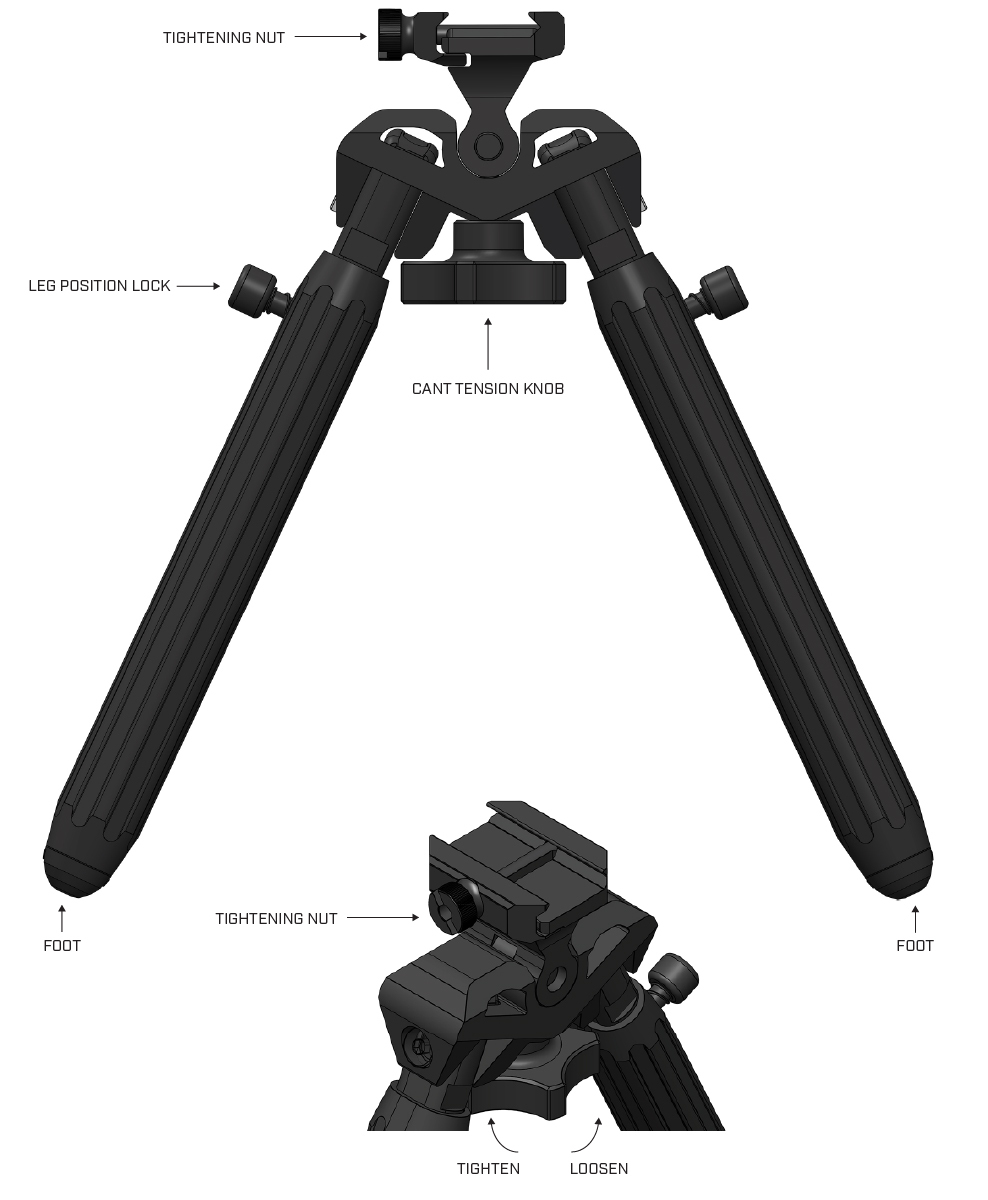

Installation Instructions
Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing. ONLY ADJUST BIPOD WITH MUZZLE POINTING IN A SAFE DIRECTION, DOWN RANGE
- ONLY INSTALL OR ADJUST BIPOD WITH MUZZLE POINTING IN A SAFE DIRECTION, DOWN RANGE.
- Loosen QD Lever on the Bipod mount and install on your firearm’s rail with the logo facing forward (towards the muzzle).
- Slowly begin closing the QD lever and adjust tensioning nut until the lever just meets the latch with minor resistance. See figure 2
- Close the lever, latch should “click” into lever with a moderate push and the Bipod will feel secure on the rail.
- Rapid Deploy legs can easily lock at 90° from a resting position by pushing them down; legs can be adjusted by pressing down and holding the leg position lock and rotating to 0°, 45° or 90°, release lock and legs will lock at one of the three positions. See Figure 1
- Bipod legs may be extended by simply pulling them out to the desired length or by depressing the lock lever and sliding them out. Retract legs by depressing the lock lever and pushing legs back into their collapsed height.
- To adjust the cant tension (ease of movement), tighten or loosen the cant tension lever. See Figure 3
- To change the orientation of the quick-deploy feature, remove the cant tension lever from bipod, turn head assembly 180 degrees, and reinstall onto the leg mechanism. Ensure all washers are replaced in their original location before reinstalling the cant tension lever.
- The bipod head may be reversed or replaced by removing the two screws in the top of the head. Replace screws and torque to 25 in-lbs. Replacement heads are available in a quick-disconnect picatinny mount or an ARCA rail mount. See Figure 2
Warne recommends that you periodically check lever tension and adjust as needed, also re-adjust if mounting on different firearm(s).
IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.
If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.
