V614M Vapor Horizontal 30mm, Medium Matte Rings

$39.99
SKU:
V614M
Brand:

Vapor®

  • Horizontally Split
  • Lightweight.
  • Fixed.
Current Stock:
4
Adding to cart… The item has been added
Key Features:
Best Uses:

Description

Available in 1 and 30mm size.
Designed and MADE IN USA

AFFORDABLE, MADE IN USA QUALITY Our Vapor® line of mounts were developed and engineered to provide you with a strong and economical mounting solution that outperforms other mounts in their class.

  • Stanag 4694 compatible
  • Classic Horizontal Design
  • Easy to install
  • Field proven performance
  • Lightweight aluminum
  • Lifetime warranty
  • Designed and Made in USA

Specifications

Part Number:
V614M
Fits Objective Size:
52mm
Height:
Medium

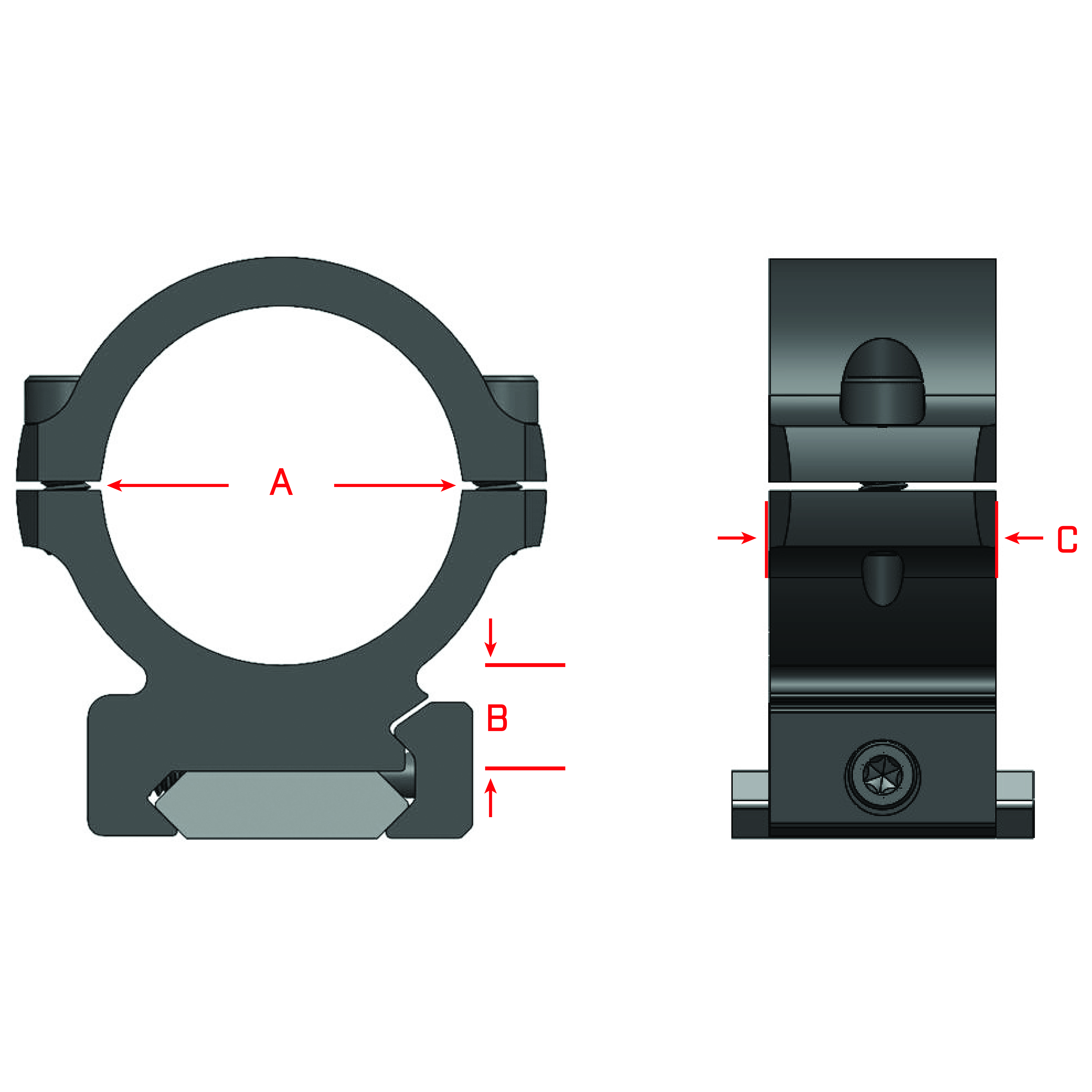

Dimension A:
30mm
Dimension B:
0.35 inch
Dimension C:
0.75 inch
Finish Color:
Matte Black
Weight:
2.9 oz
Material:
Aluminum
Fits Objective Up To:
52mm
Scope Tube Diameter:
30mm
Fits:
Maxima/Weaver Bases and Picatinny Rails

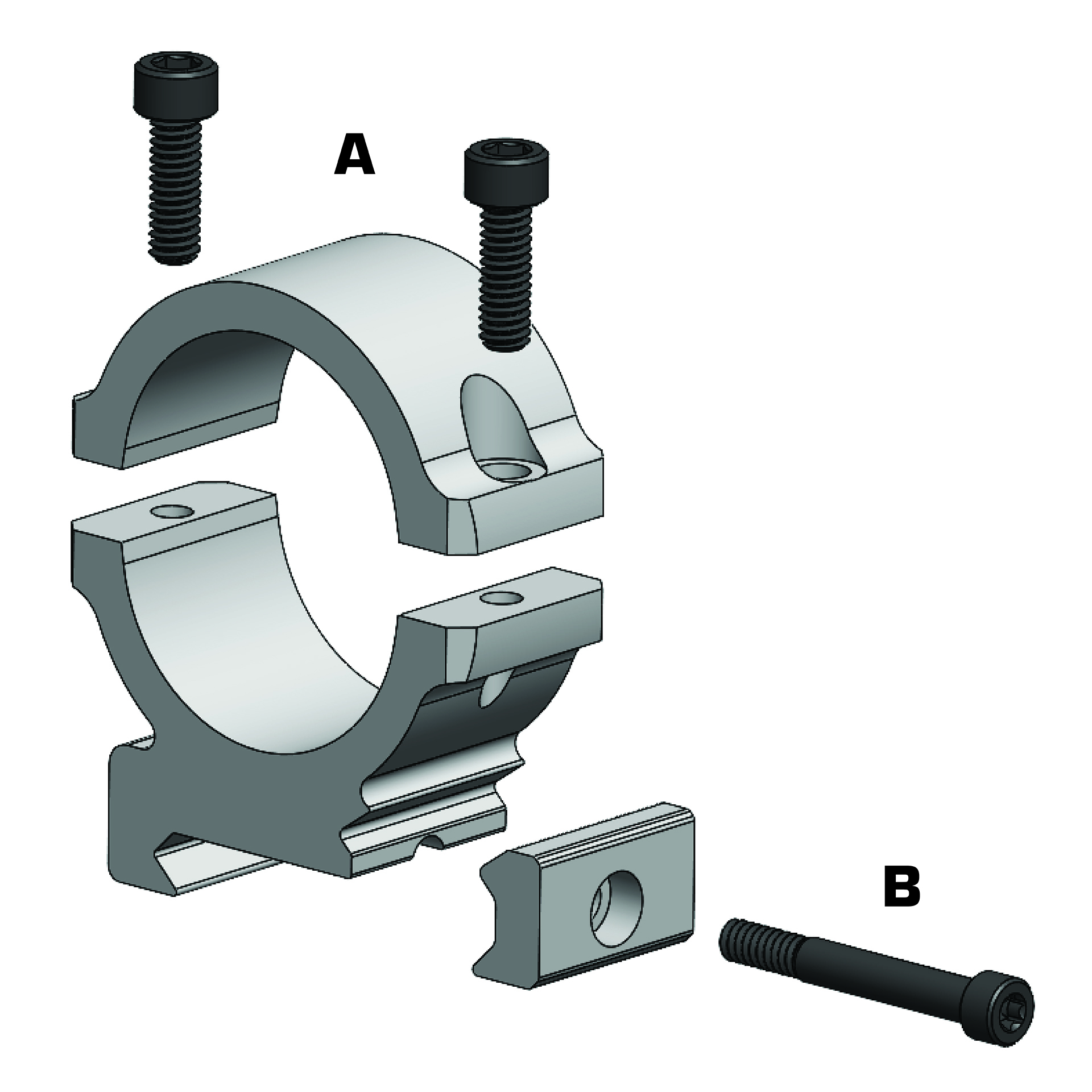

Installation Instructions

Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.
  • Remove both cap screws and cap on each ring. (A)
  • Loosen clamp screw on each ring (B) and place in desired position on Maxima®/Weaver style bases or picatinny rail.
  • Push each ring towards muzzle to seat cross-bolt and tighten clamp screws to 25 in-lb max.
  • Place scope in rings and reinstall cap screws, leave loose.
  • Adjust scope position for eye relief and level reticle.
  • Tighten each cap screw until snug, leaving an even gap on both sides. Torque both cap screws to scope manufactures** recommended torque setting.

*Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND

**Many scope manufacturers’ have established specific torque ratings for their scope and you must follow their recommended torque.

IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.

If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.
