Key Features:
Best Uses:
Description
Available in 1 inch and 30mm
Designed and MADE IN USA
This product contains chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov
Bridge the gap between affordable reliability and high-end features with the all-new Warne® MaxLite MSR Mount. Engineered for shooters who demand uncompromising performance and value without sacrificing Made-In-USA quality, this mount is the ideal choice for your Modern Sporting Rifle. The MaxLite Mount gives you the core performance of Warne's MSR line, robust construction, correct MSR height, and ideal cantilever, at a price point that makes sense. It's the perfect sweet spot for the serious shooter who is mindful of their budget.
FEATURES:
- 6061-T6 Aluminum
- Black Anodize Finish
- Starting-at Weight: 6.1oz
- Dual Integrated Recoil Lugs
- Dual Cross-Bolt Clamp
- MSR Ideal Height
- Forward Cantilever
- Lightweight, Rugged Design
Specifications
- Part Number:
- 6603M
- Fits Objective Size:
- 72mm
- Height:
- MSR Ideal Height

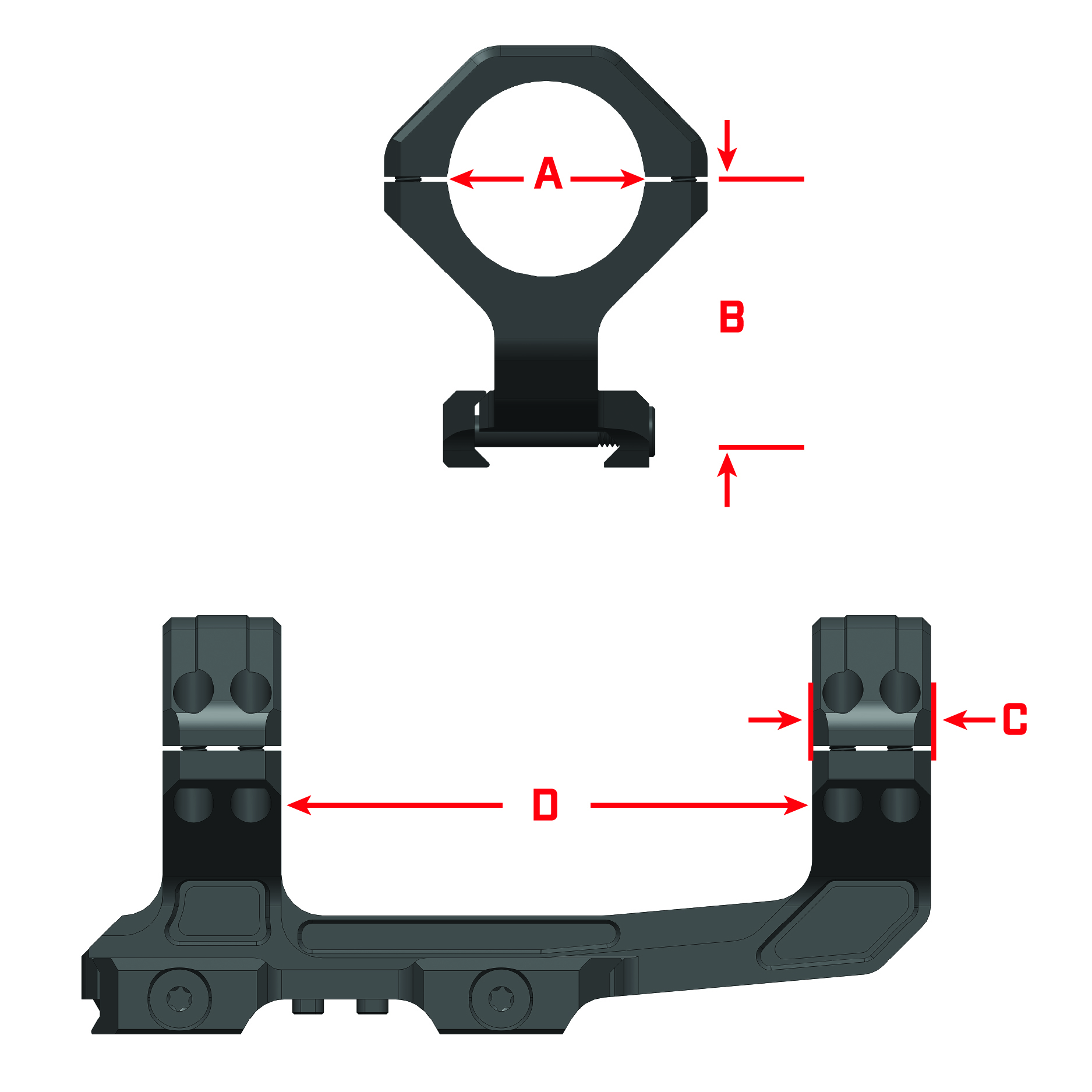

- Dimension A:
- 30mm
- Dimension B:
- 1.50 inch
- Dimension C:
- .725 inch
- Dimension D:
- 3.25 inch
- Finish Color:
- Black
- Weight:
- 6.1 oz
- Material:
- Aluminum
- Scope Tube Diameter:
- 30mm
- Fits Objective Up To:
- MSR Ideal Height
Related Products
Tactical
XSKEL30TW Gen 2, Extended Skeletonized 30mm MSR Mount, Black
MSRP:
$159.99
Was:
$159.99
Now:
$141.99
Sale

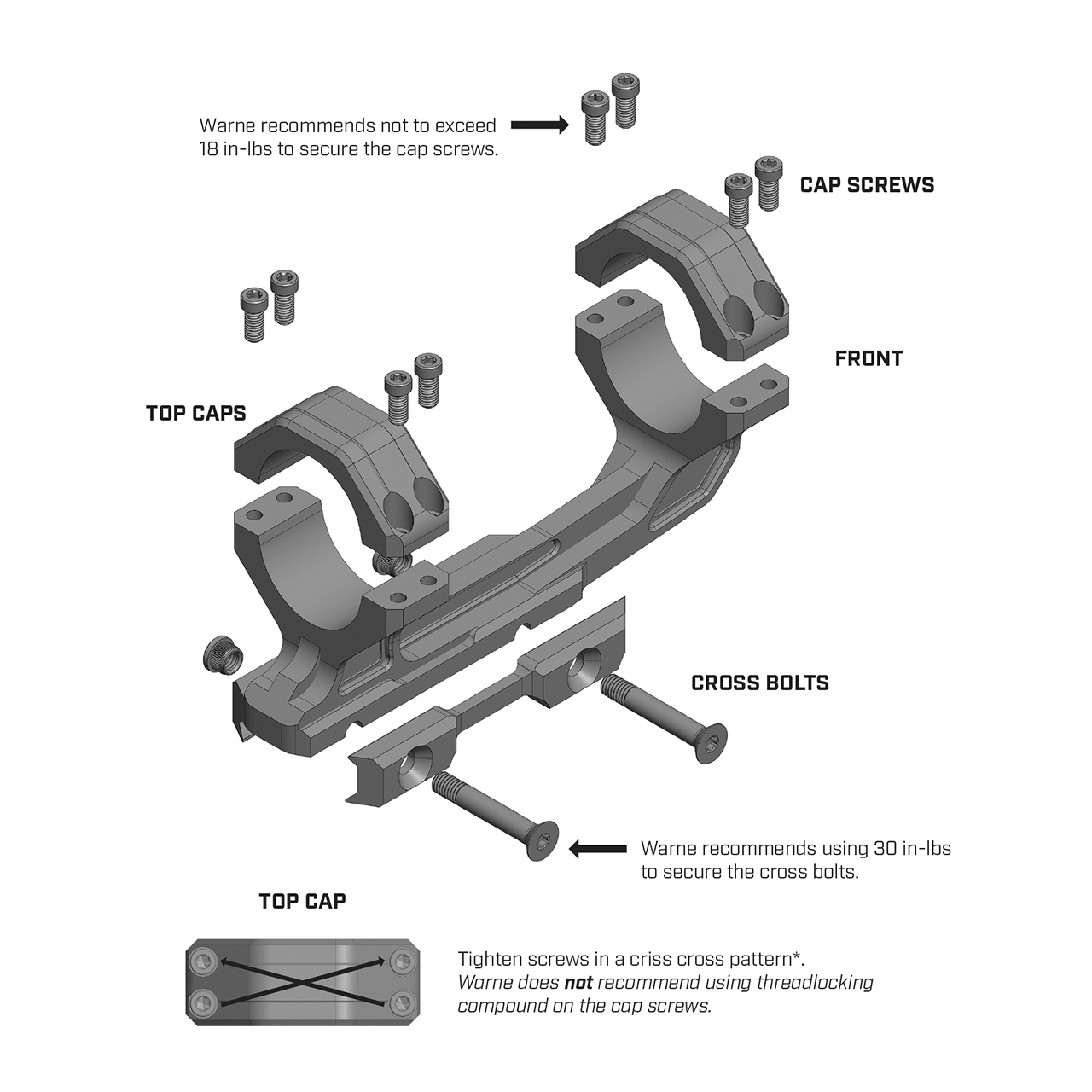

Installation Instructions
Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.
- Loosen both cross bolts on the MaxLite Mount with the supplied T-20 wrench and install on your picatinny style rail with the cantilever forward (Warne recommends installing the mount with the front cross bolt in the farthest forward slot on AR15 Flat Tops.)
- Push the mount towards the muzzle and tighten cross bolts to 30 in-lb.
- Remove the four cap screws from each top cap with the supplied T-15 wrench and remove the top caps.
- Place your scope in the mount and replace the top caps and reinstall cap screws, leave loose. Do not use thread locking compound on cap screws.
- Slowly tighten cap screws evenly and leave loose enough to adjust for eye relief.
- Level the reticle and then tighten the cap screws in a crisscross pattern to scope manufactures* recommended torque setting.
Torque Specs are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND
*Check scope documentation or contact scope maker, most scope manufactures have a specific maximum torque value for mounting, however, Warne? recommends not to exceed 18 in-lb. on the cap screws.
IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.
If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.
